Characteries:

l Adopt the 4th generation DSP chip of ADSP-21489 400MHz 32/40-bit floating-point DSP with 96KHz Sampling rate;

l Use ELNA electrolytic capacitors and other world-famous audio dedicated devices to deliver a pleasant sound;

l Built-in sine, white noise, noise-splitting signal generator, and could be used as a test signal;
l The input line or microphone switch. Microphone input, + 48V phantom power on or off;
l Input signal processing: Volume, Phase, Mute, Noise Gate, Feedback Suppressor, Parameter Equalization, Dynamic Equalization,                       Crossover, Compressor,Delay,Auto-mixer;

l Output signal processing: Matrix Mixer, Volume, Phase, Mute, Crossover, Compressor, Limiter and Delay;
l Each input and output 10-band PEQ includes PEQ / low-shelf / hi-shelf / All pass1 / All pass2 and other filter types. All could be set flexibly;
l Input with 3-band dynamic EQ to improve the audio performance;
l Input and Output Delay up to 1000ms;
l 2 * 20 LCD display to show the LED signal and status;

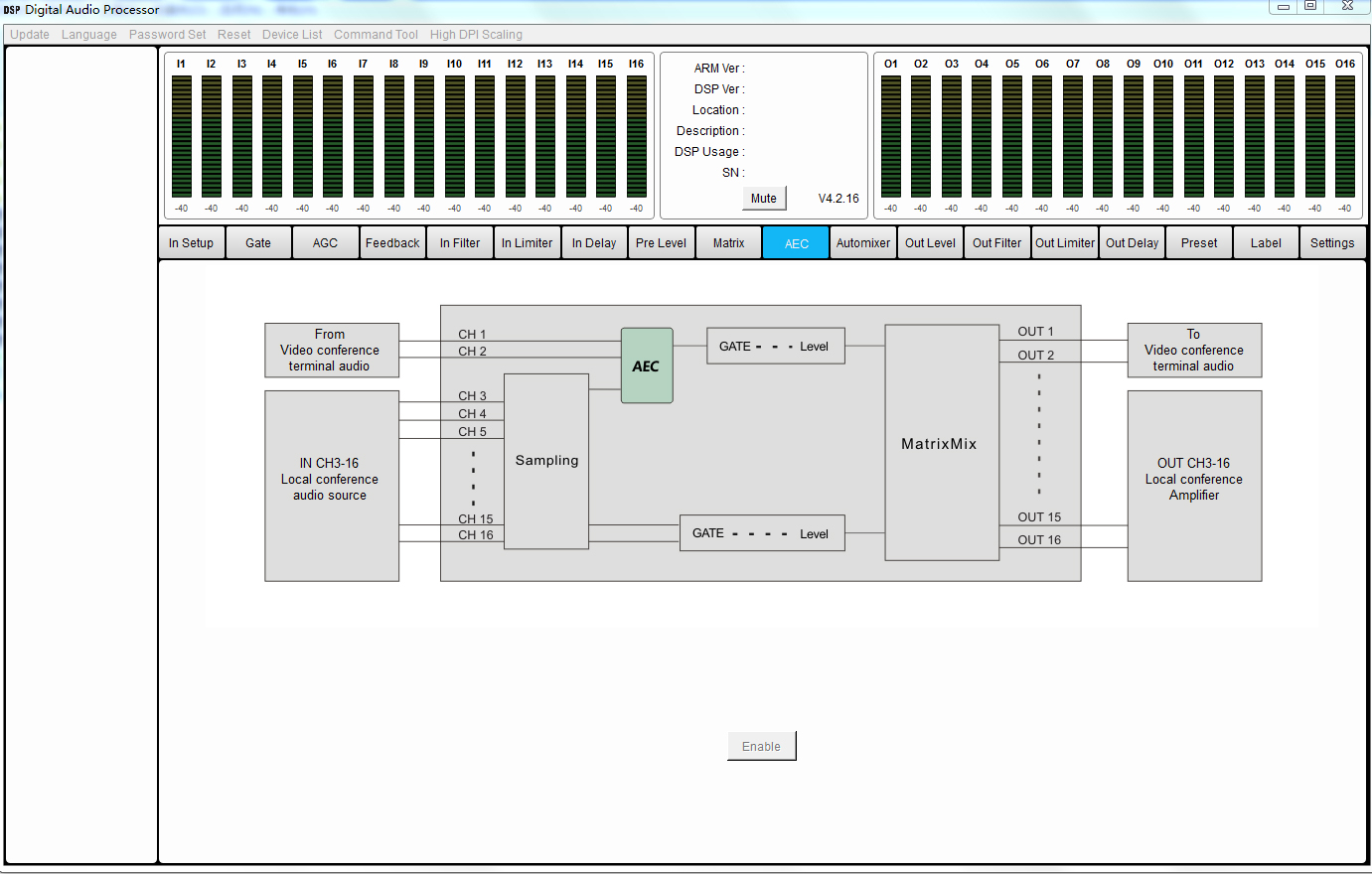

l PC software automatically search for online devices, 23 groups of Presets could be imported and exported flexibly;
l Channels link and channels copy function to improve the engineer’s efficiency;
l Full port RF protection to protect the safe and reliable operation of the equipment;
l Ethernet + USB + RS232 + RS485 and GPIO port, open protocol for third-party control.

 Specifications：
